Difference: BlingBlingTechnikEn (1 vs. 4)

Revision 42016-03-30 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="EWheelEn"
%DASHBOARD{ section="banner"
Line: 44 to 44

<--/commentPlugin-->

Added:
>
>
META PREFERENCE name="WEBLOGOURL" title="WEBLOGOURL" type="Set" value="http://veloblingbling.ch/twiki/bin/view/Velo/EWheelEn"
META PREFERENCE name="WEBLOGOIMG" title="WEBLOGOIMG" type="Set" value="http://veloblingbling.ch/twiki/pub/Velo/EWheelEn/kmh-veloblingbling-thumb.png"
META PREFERENCE name="WEBLOGOALT" title="WEBLOGOALT" type="Set" value="Velo Bling-Bling home"

Revision 32016-03-29 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="EWheelEn"
%DASHBOARD{ section="banner"
Line: 8 to 8
 }%
Changed:
<
<

Funktionsmuster

>
>

Functional Model


Changed:
<
<
mit Wrap-Drähten verdrahtet
LiPo-Akku und KL25Z Huckepack
Mit 12 LEDs, Freescale FRDM-KL25Z und Arduino Proto Shield. Proof of Concept (Machbarkeitsnachweis). Januar 2014.
>
>

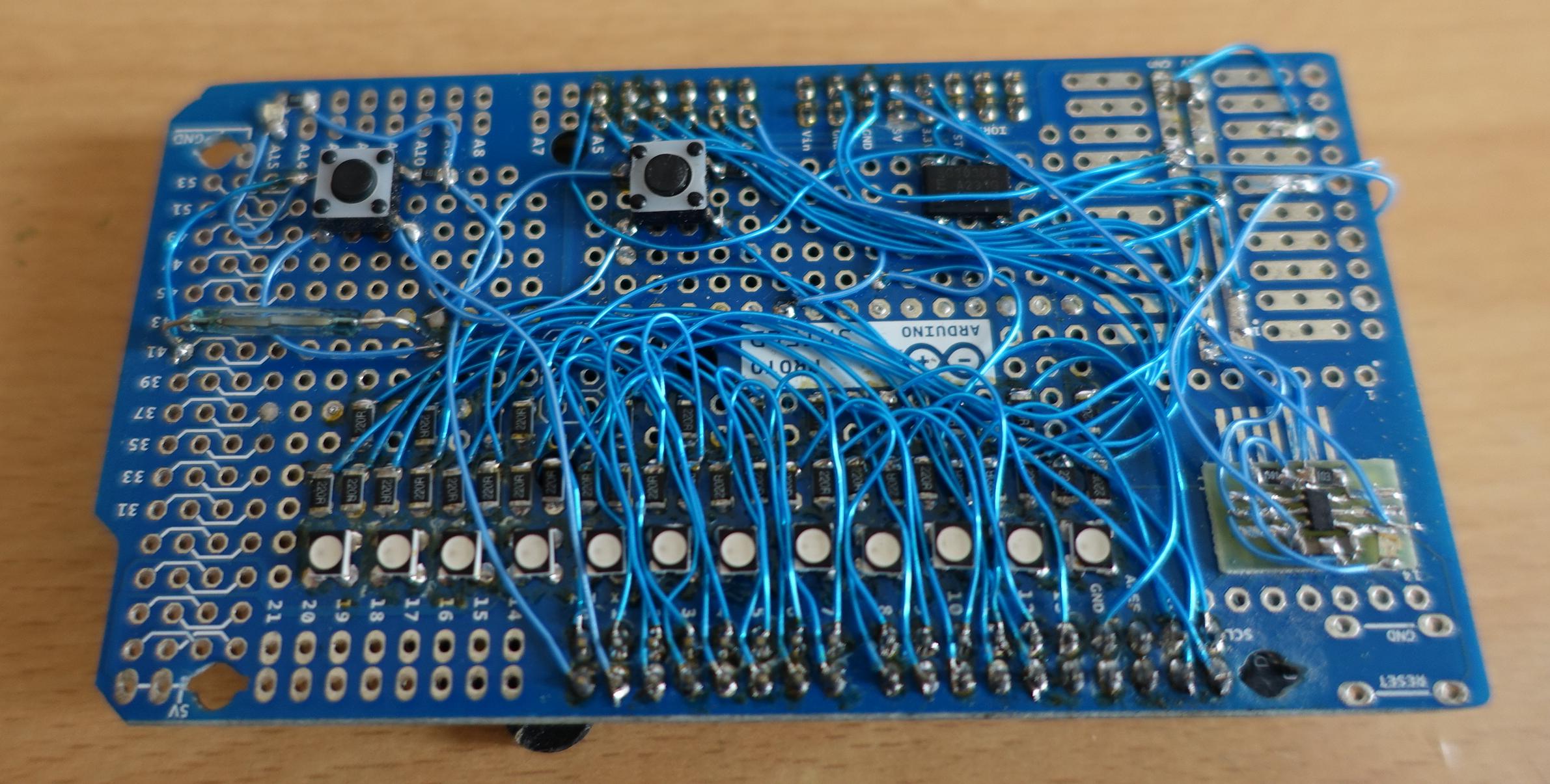

Harnessed with soldered wire-wrap wires

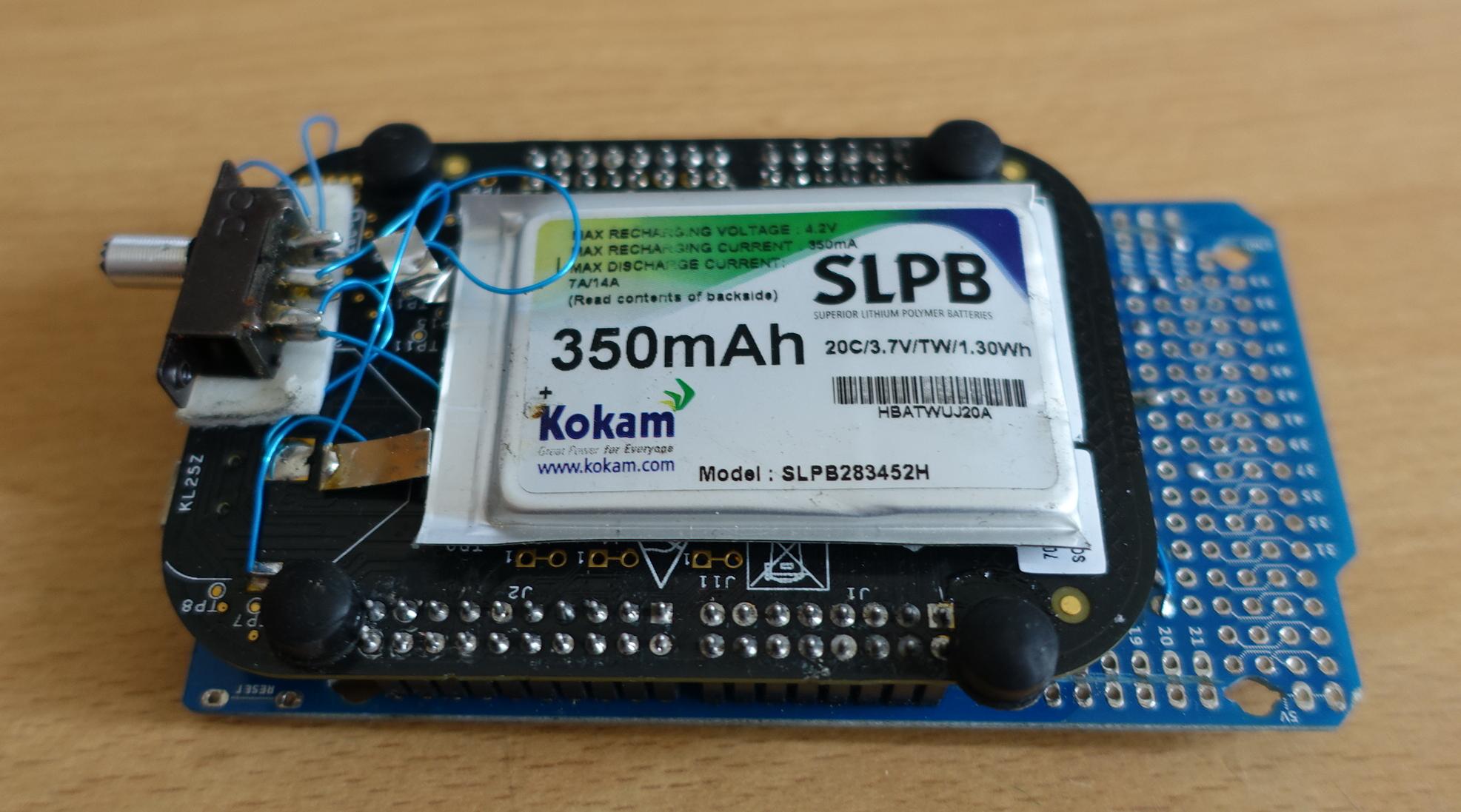

LiPo battery and piggy-back KL25Z
With only 12 LEDs, Freescale FRDM-KL25Z and Arduino Proto Shield. Proof of concept, January 2014.

Changed:
<
<

1. Prototyp

>
>

1. Prototype


Changed:
<
<
Mit Epoxy-Kleber vergossen

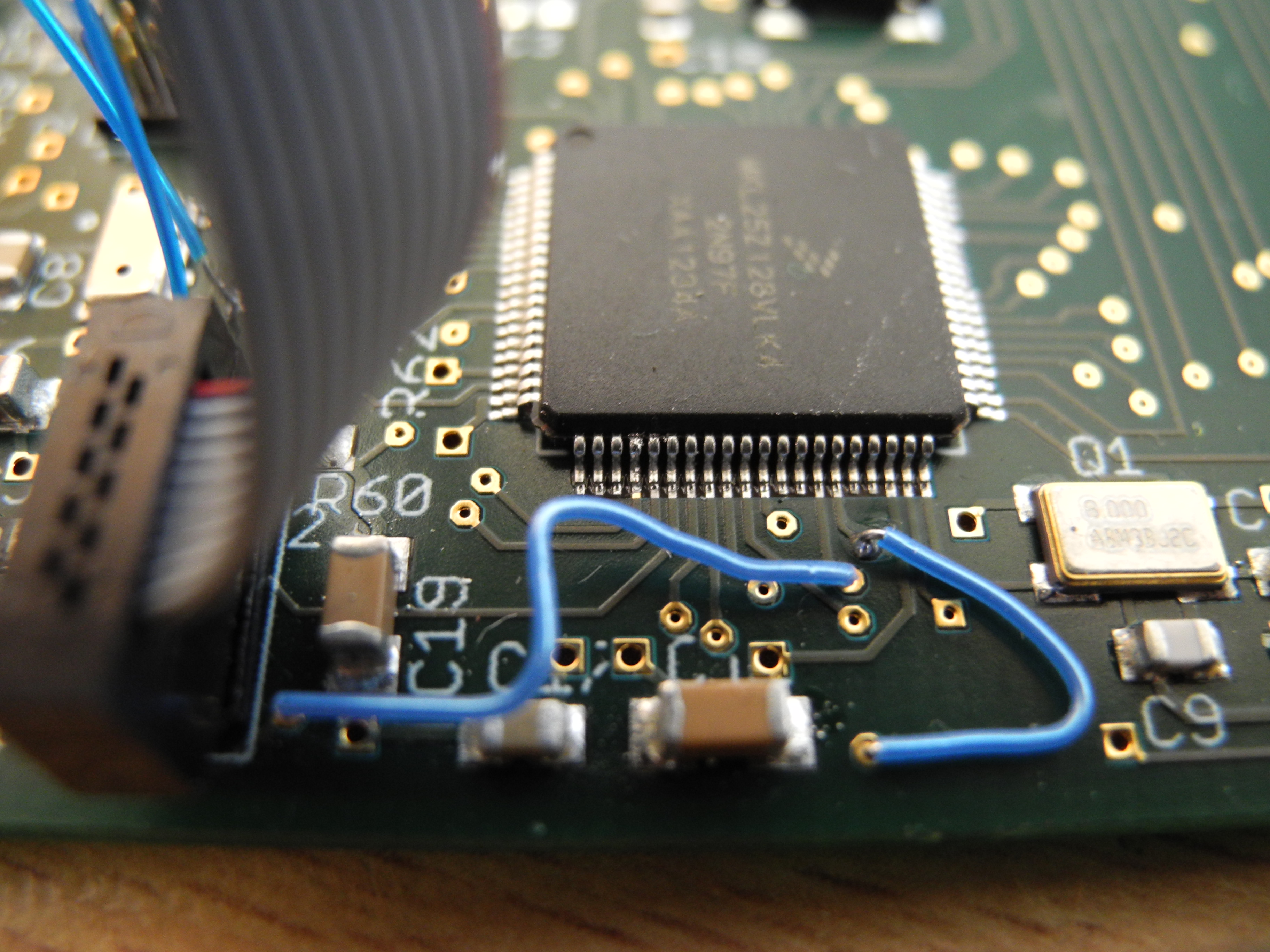

Mit 16 LEDs, inkl. Bluetooth Low Energy (BLE), Microcontroller MKL25Z128VLK4 von Freescale, ca. 165 mm x 44 mm gross. April 2014.
>
>
Potted with epoxy glue
With 16 LEDs (one side only), w/ Bluetooth Low Energy (BLE), Microcontroller MKL25Z128VLK4 from Freescale (now NXP), PCB ca. 165 mm x 44 mm. April 2014.

Changed:
<
<

2. Prototyp

>
>

2. Prototype


Changed:
<
<
Vergossen mit Polyurethan

Mit 32 LEDs (jeweils 16 vorne und hinten), neuer Microcontroller MK22DX256VLF von Freescale, ca. 160 mm x 30 mm gross. Hardware etwa Juli 2014, Software Oktober 2014.
>
>
Potted in polyurethane (PUR)

With 32 LEDs (front- and backside), new microcontroller MK22DX256VLF from Freescale (NXP), PCB ca. 160 mm x 30 mm. Hardware July 2014, software October 2014.

Changed:
<
<

3. Prototyp

>
>

3. Prototype


Changed:
<
<
Vergossen mit Polyurethan
Nur wenig Änderungen gegenüber 2. Prototyp. Neu: Beschleunigungssensor, Hall-Sensor statt Reed, JTAG-Stecker auf Rückseite. Hardware etwa Januar 2015, Software Februar 2015.
>
>
Potted in polyurethane (PUR)

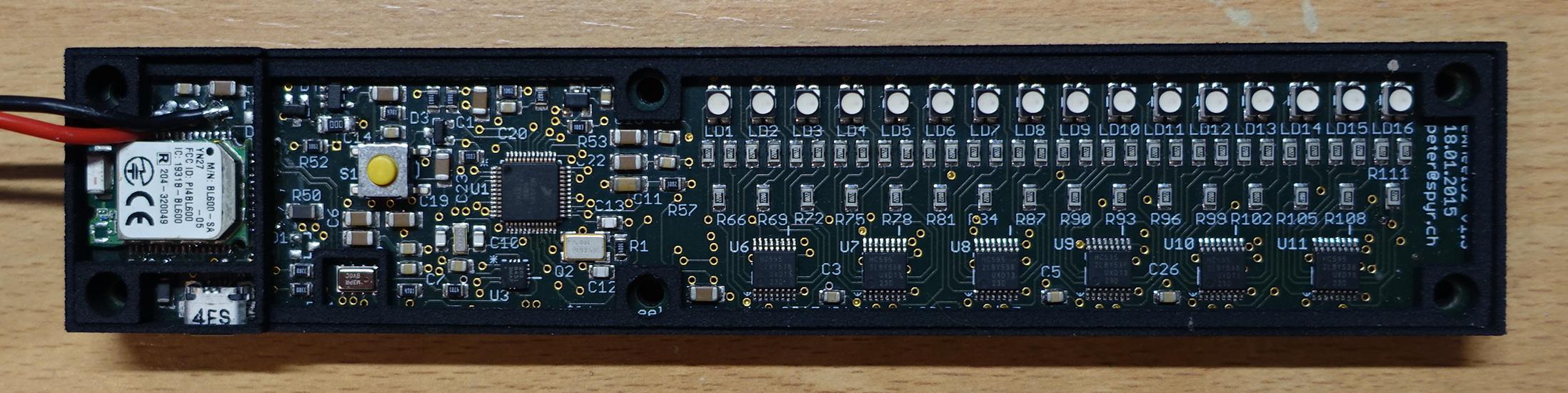

Minor changes to 2. prototype: accelerometer, Hall effect sensor instead reed switch, mini JTAG connector on backside. Hardware January 2015, software February 2015.

Added:
>
>

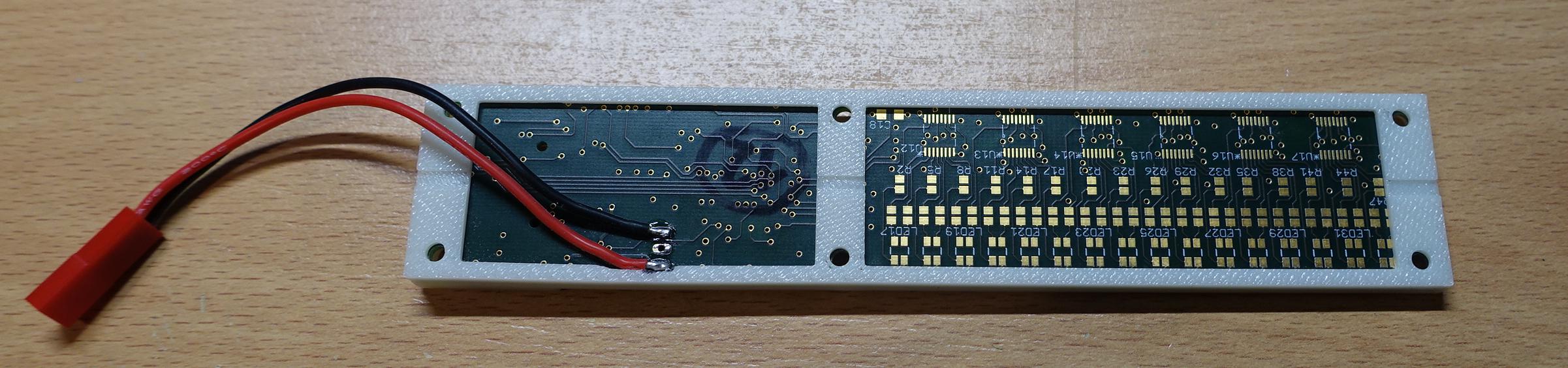

Frame, 3D CAD Model


Changed:
<
<

Gehäuse, 3D CAD Modell

Modelliert mit OpenSCAD
>
>
Modeled with OpenSCAD



-- Peter Schmid - 2014-10-17

Revision 22016-03-28 - PeterSchmid

Line: 1 to 1

META TOPICPARENT name="EWheelEn"
%DASHBOARD{ section="banner"
Changed:
<
<
image="/twiki/pub/Velo/BlingBlingTechnikEn/prototyp2.jpg" title="Bling-Bling Technology"
>
>
image="/twiki/pub/Velo/BlingBlingTechnik/prototyp2.jpg" title="Bling-Bling History"
  titlestyle="color:#F00000;" }%

Funktionsmuster

Changed:
<
<
Error: (3) can't find proto1-arduino.jpg in Velo Error: (3) can't find proto1-batterie.jpg in Velo
>
>
mit Wrap-Drähten verdrahtet
LiPo-Akku und KL25Z Huckepack
 Mit 12 LEDs, Freescale FRDM-KL25Z und Arduino Proto Shield. Proof of Concept (Machbarkeitsnachweis). Januar 2014.

1. Prototyp

Changed:
<
<

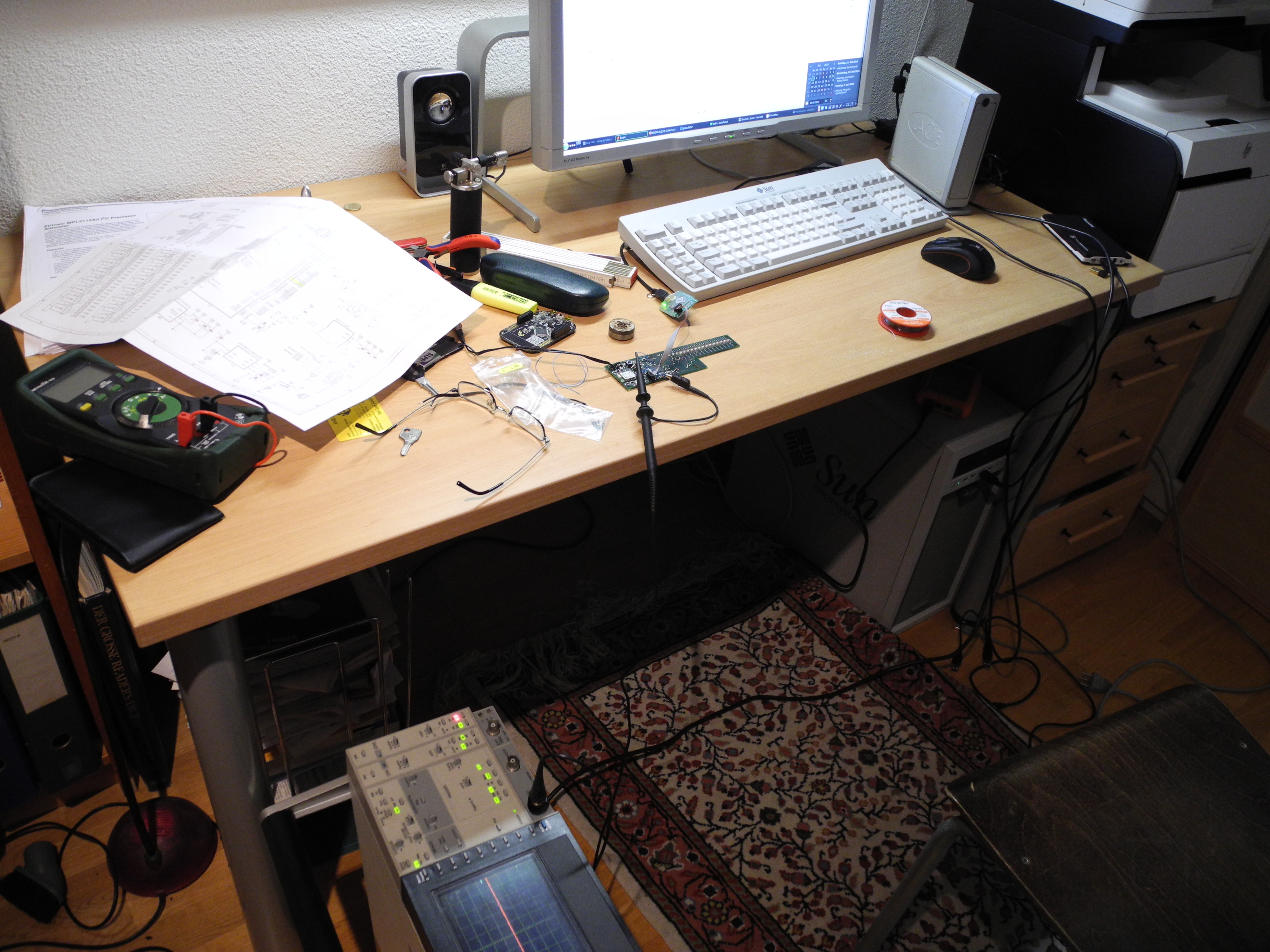

Error: (3) can't find proto2.jpg in Velo Error: (3) can't find DSCN2361.JPG in Velo Error: (3) can't find DSCN2359.JPG in Velo Error: (3) can't find DSCN2360.JPG in Velo Error: (3) can't find proto3-epoxy.jpg in Velo
>
>
Mit Epoxy-Kleber vergossen
 Mit 16 LEDs, inkl. Bluetooth Low Energy (BLE), Microcontroller MKL25Z128VLK4 von Freescale, ca. 165 mm x 44 mm gross. April 2014.

2. Prototyp

Changed:
<
<
Error: (3) can't find proto3-pcb.jpg in Velo Error: (3) can't find proto3-hr.jpg in Velo Error: (3) can't find proto3-vr.jpg in Velo
Error: (3) can't find vergossen-top.jpg in Velo Error: (3) can't find vergossen-bottom.jpg in Velo
>
>
Vergossen mit Polyurethan

 Mit 32 LEDs (jeweils 16 vorne und hinten), neuer Microcontroller MK22DX256VLF von Freescale, ca. 160 mm x 30 mm gross. Hardware etwa Juli 2014, Software Oktober 2014.

3. Prototyp

Changed:
<
<
Error: (3) can't find proto1.3-top.jpg in Velo Error: (3) can't find proto1.3-bottom.jpg in Velo Error: (3) can't find proto1.3-top-pur.jpg in Velo Error: (3) can't find proto1.3-bottom-pur.jpg in Velo
>
>
Vergossen mit Polyurethan
 Nur wenig Änderungen gegenüber 2. Prototyp. Neu: Beschleunigungssensor, Hall-Sensor statt Reed, JTAG-Stecker auf Rückseite. Hardware etwa Januar 2015, Software Februar 2015.

Gehäuse, 3D CAD Modell

Changed:
<
<
Error: (3) can't find assembled-top.png in Velo Error: (3) can't find assembled-bottom.png in Velo Error: (3) can't find unterteil.png in Velo Error: (3) can't find oberteil.png in Velo
Error: (3) can't find 3d-print-top.jpg in Velo Error: (3) can't find 3d-print-bottom.jpg in Velo
>
>
Modelliert mit OpenSCAD

  -- Peter Schmid - 2014-10-17

Revision 12016-03-22 - PeterSchmid

Line: 1 to 1
Added:
>
>
META TOPICPARENT name="EWheelEn"
Bling-Bling Technology

Funktionsmuster

Error: (3) can't find proto1-arduino.jpg in Velo Error: (3) can't find proto1-batterie.jpg in Velo
Mit 12 LEDs, Freescale FRDM-KL25Z und Arduino Proto Shield. Proof of Concept (Machbarkeitsnachweis). Januar 2014.

1. Prototyp

Error: (3) can't find proto2.jpg in Velo Error: (3) can't find DSCN2361.JPG in Velo Error: (3) can't find DSCN2359.JPG in Velo Error: (3) can't find DSCN2360.JPG in Velo Error: (3) can't find proto3-epoxy.jpg in Velo
Mit 16 LEDs, inkl. Bluetooth Low Energy (BLE), Microcontroller MKL25Z128VLK4 von Freescale, ca. 165 mm x 44 mm gross. April 2014.

2. Prototyp

Error: (3) can't find proto3-pcb.jpg in Velo Error: (3) can't find proto3-hr.jpg in Velo Error: (3) can't find proto3-vr.jpg in Velo
Error: (3) can't find vergossen-top.jpg in Velo Error: (3) can't find vergossen-bottom.jpg in Velo
Mit 32 LEDs (jeweils 16 vorne und hinten), neuer Microcontroller MK22DX256VLF von Freescale, ca. 160 mm x 30 mm gross. Hardware etwa Juli 2014, Software Oktober 2014.

3. Prototyp

Error: (3) can't find proto1.3-top.jpg in Velo Error: (3) can't find proto1.3-bottom.jpg in Velo Error: (3) can't find proto1.3-top-pur.jpg in Velo Error: (3) can't find proto1.3-bottom-pur.jpg in Velo
Nur wenig Änderungen gegenüber 2. Prototyp. Neu: Beschleunigungssensor, Hall-Sensor statt Reed, JTAG-Stecker auf Rückseite. Hardware etwa Januar 2015, Software Februar 2015.

Gehäuse, 3D CAD Modell

Error: (3) can't find assembled-top.png in Velo Error: (3) can't find assembled-bottom.png in Velo Error: (3) can't find unterteil.png in Velo Error: (3) can't find oberteil.png in Velo
Error: (3) can't find 3d-print-top.jpg in Velo Error: (3) can't find 3d-print-bottom.jpg in Velo

-- Peter Schmid - 2014-10-17
