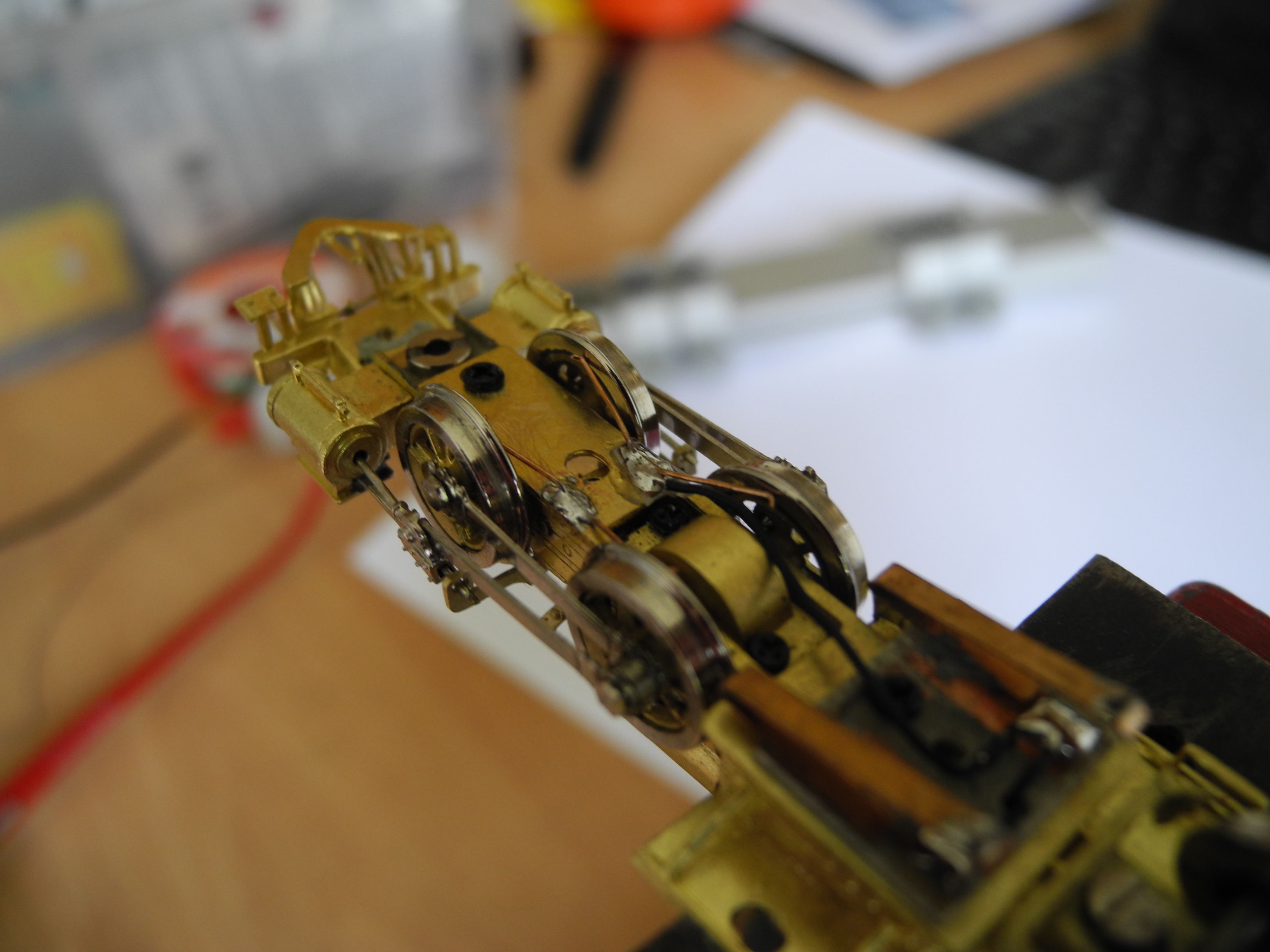

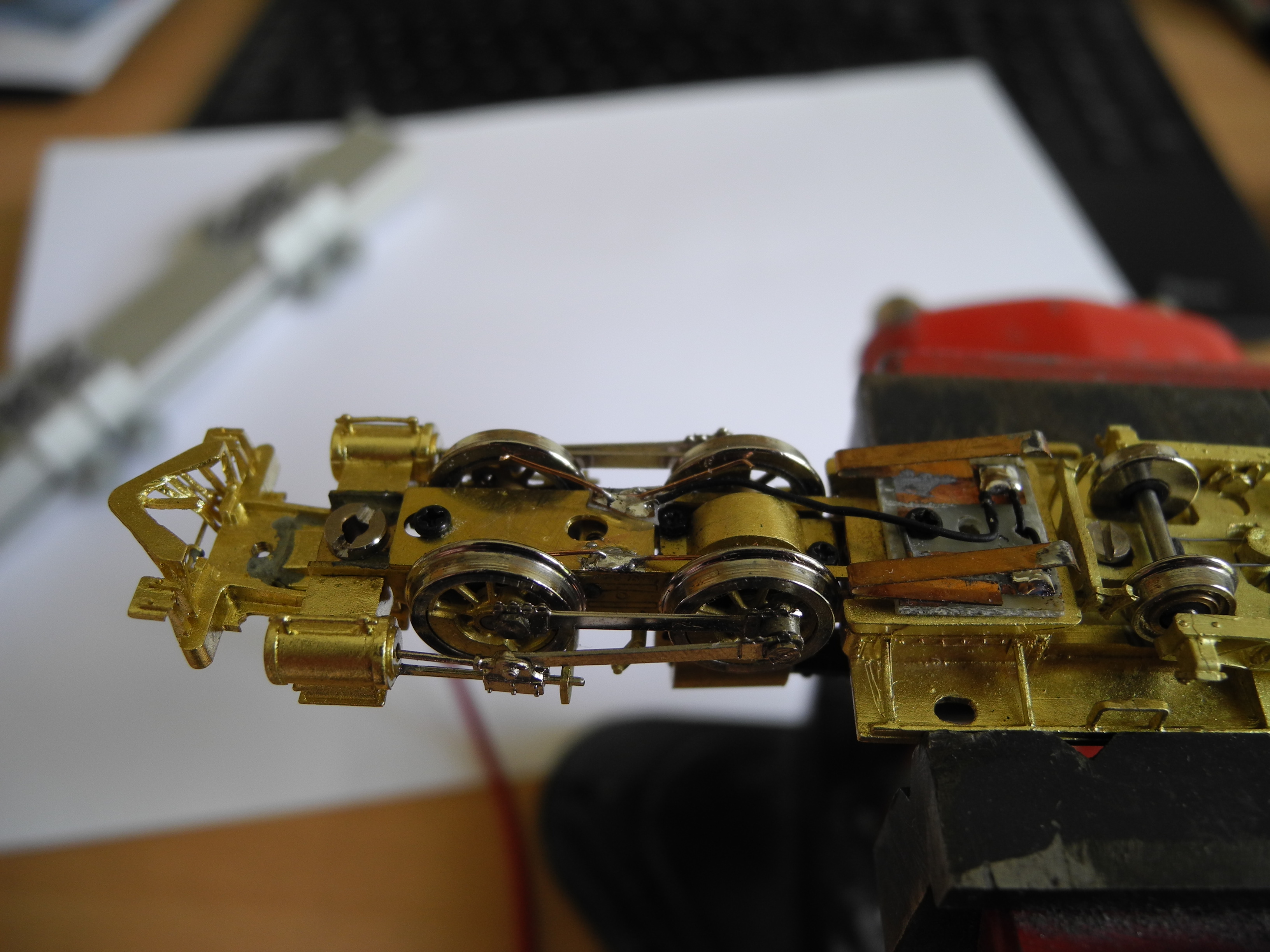

The power pickup should be improved as well. I built an additional power pick up with bronze wires à la Backwoods Miniatures. The pickup on the left side has to be isolated from the chassis. I solved this with a thin (0.2 mm) bronze sheet metal (4 x 2.5 mm). I glued (5 min. epoxy) a paper shim between chassis and the sheet metal for isolating. You have to solder to the wire before glueing the paper.
This work by Peter Schmid is licensed under a Creative Commons Attribution-ShareAlike 4.0 International License.
-- PeterSchmid - 2012-06-13
