0-6-0T Saddle-Tank Engine

I would like to have a standard gauge tank engine as a switcher for an industrial line. A long time ago I bought the MDC/Roundhouse 3-in-1 kit Moose Jaws Static Kit 1550. Actually, I wanted to build a narrow gauge locomotive with it, but the shell/body was much too big for that (at least for HO scale).

Saw mills, paper mills https://www.nps.gov/parkhistory/online_books/steamtown/shs2b.htm

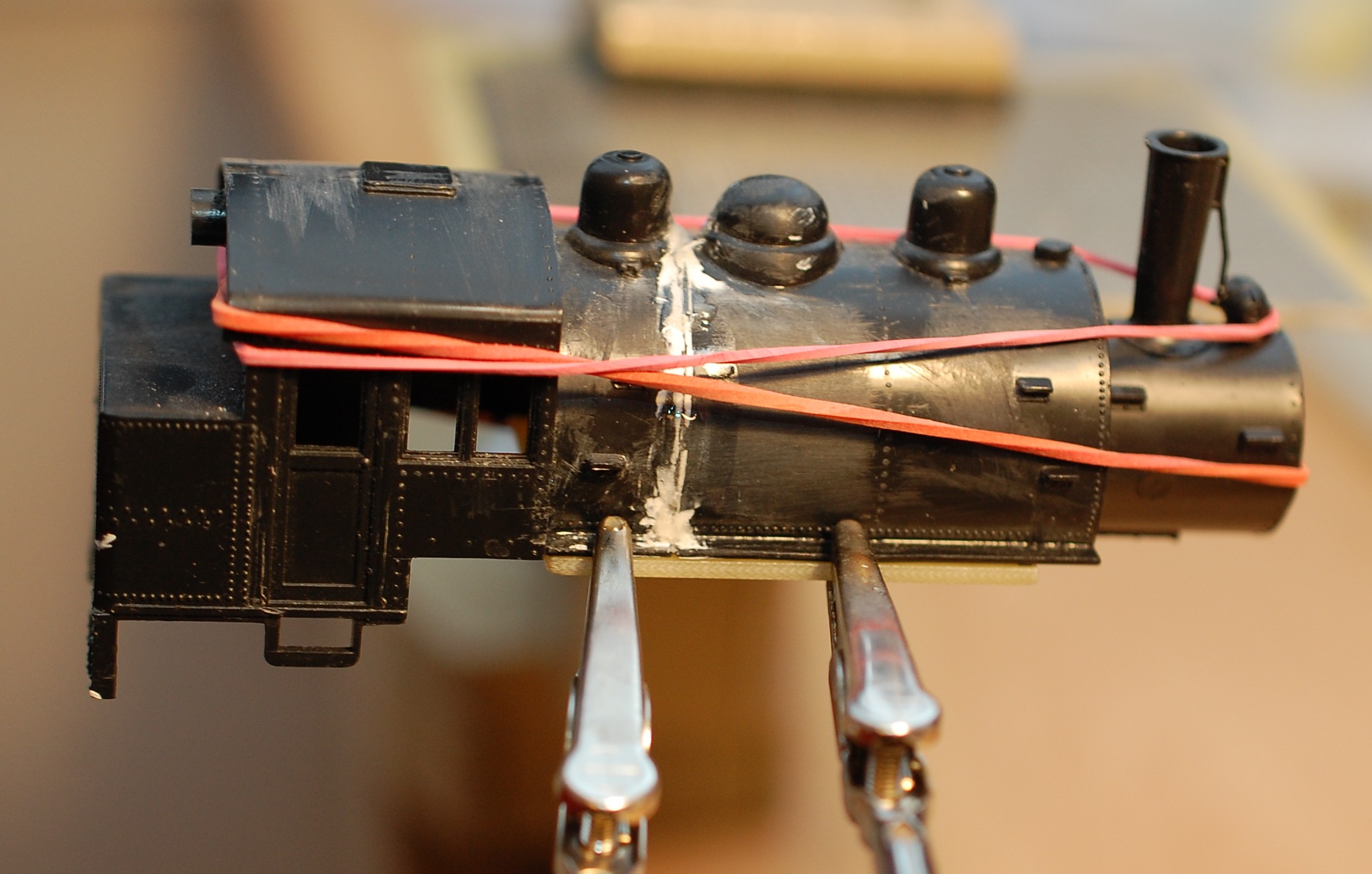

Shell/Body

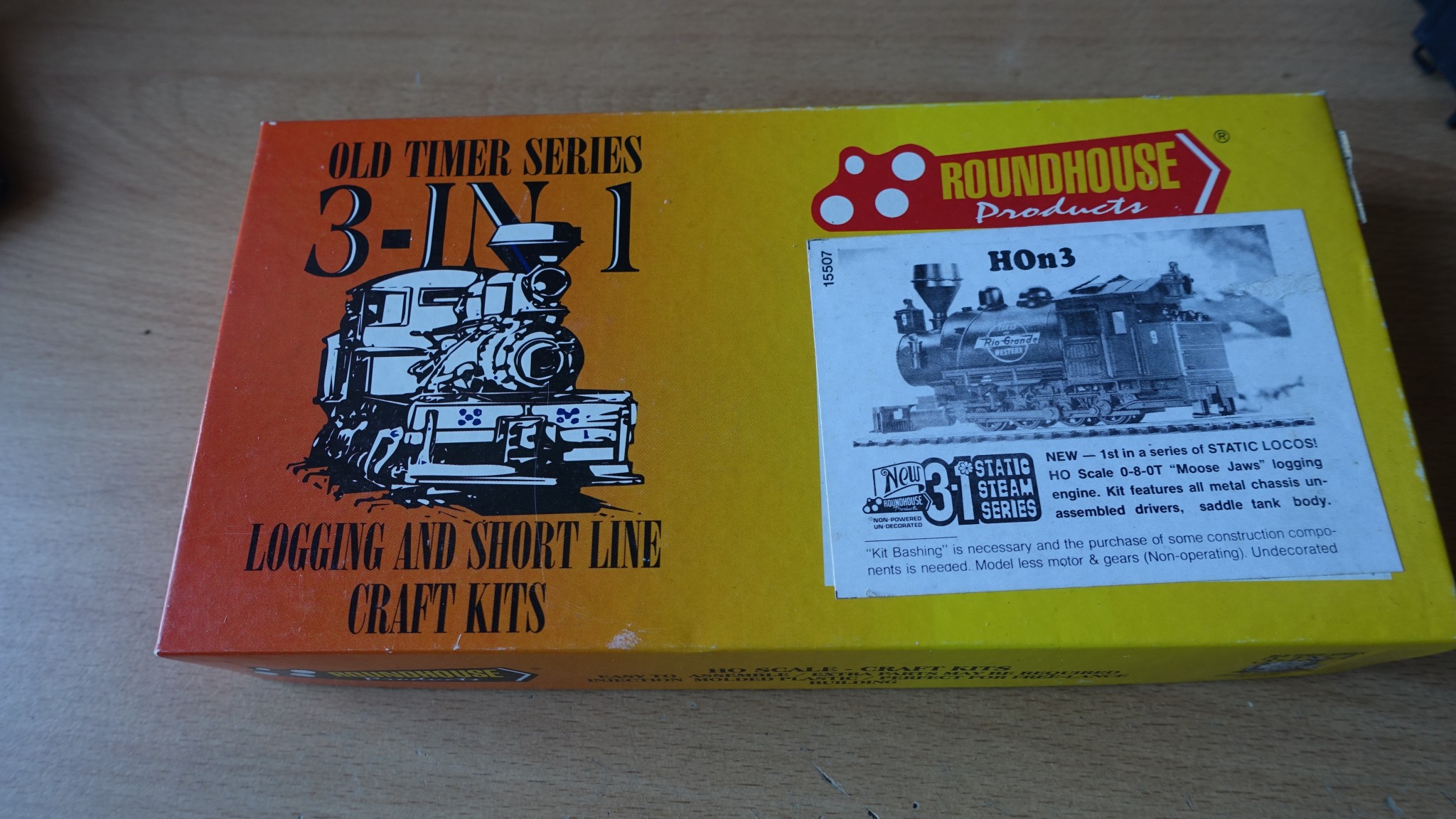

MDC/Roundhouse Moose Jaws Static Kit 1550

3-in-1 kit instructions http://kitbash.ourpage.com/3in1/1550a.pdf

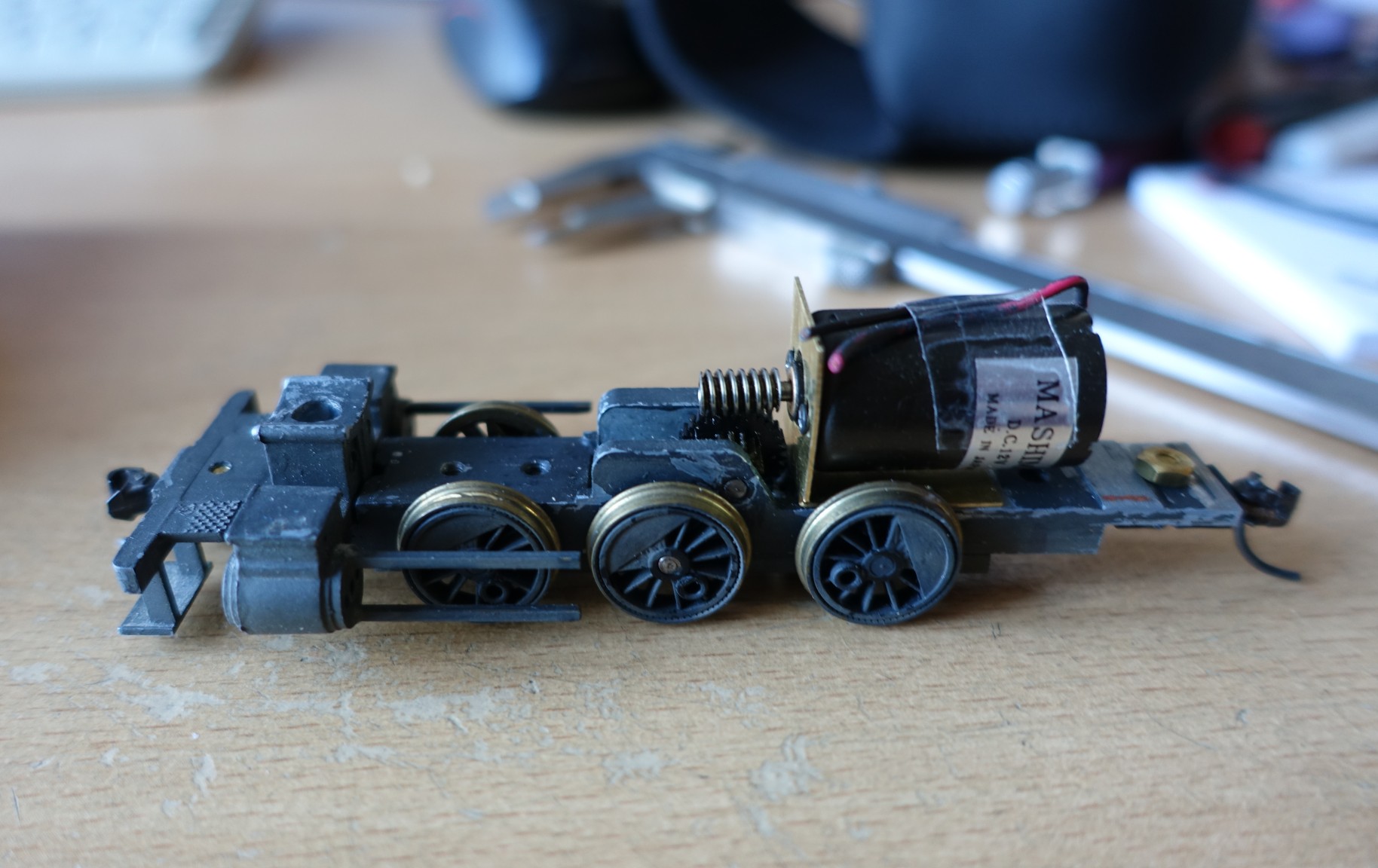

Chassis

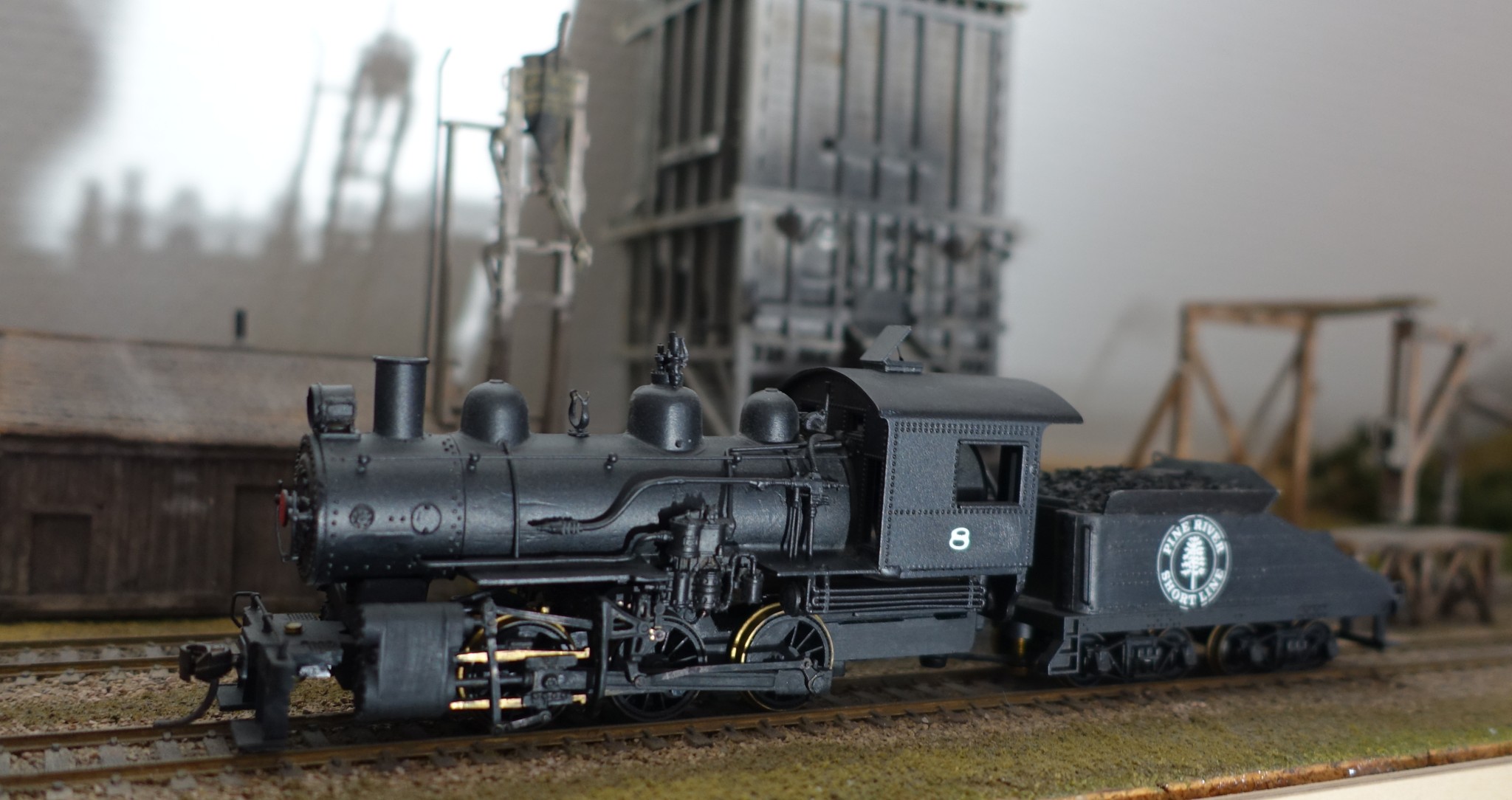

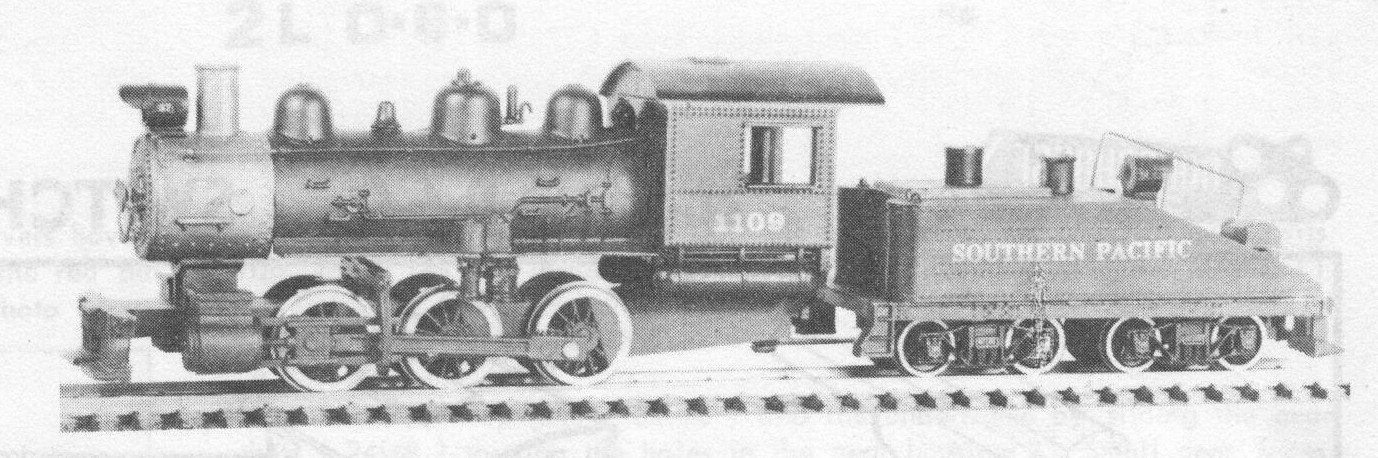

  • MDC/Roundhouse 0-6-0 Switcher Kit
  • Mashima can motor 16x27 mm
  • Regear Set 2.0 mm Shaft motor MDC Compound Gear NWSL KIT 45-1

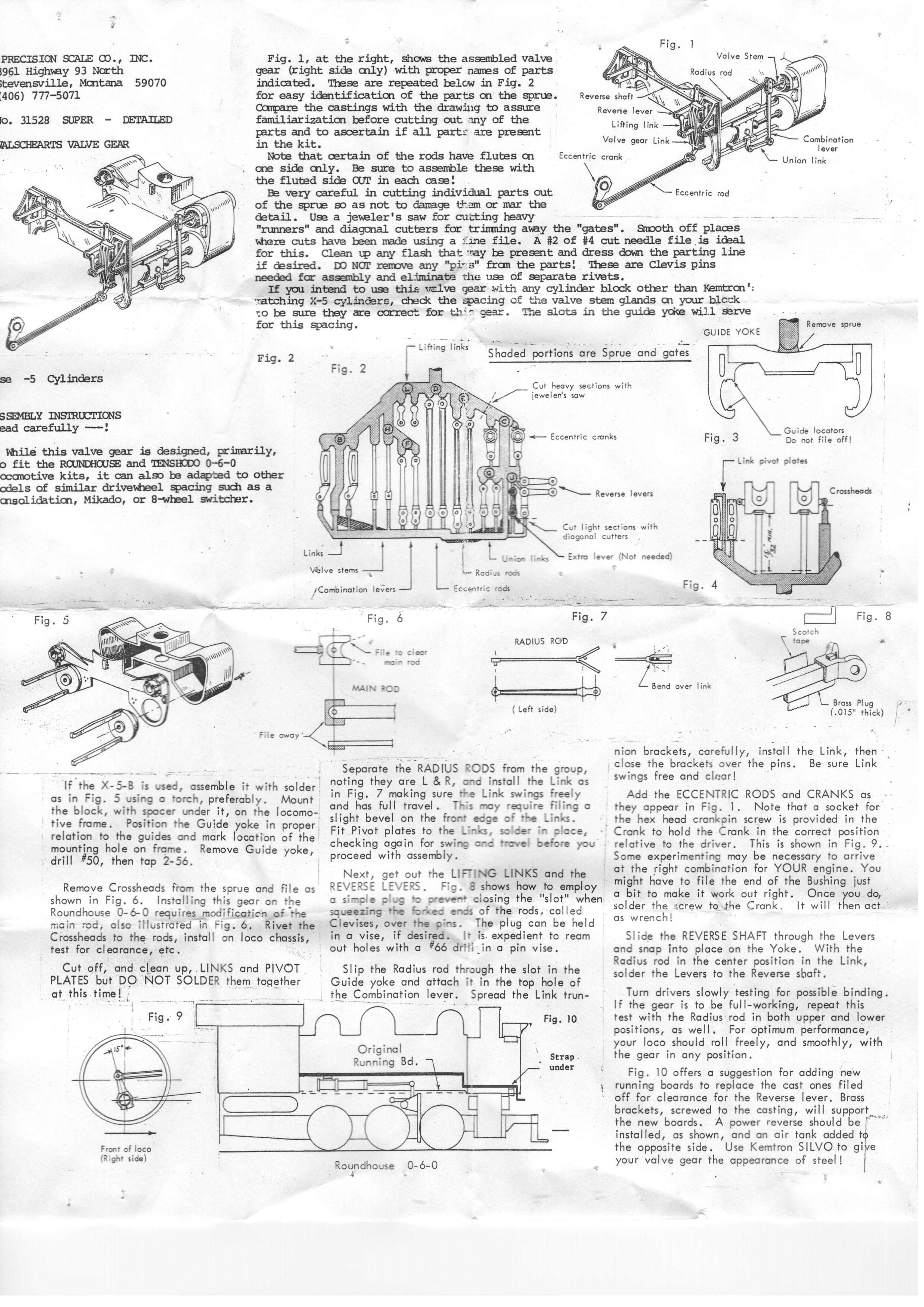

  • Walschearts Valve Gear Precision Scale Co. #31528
  • Cylinder Block w/Guides Precision Scale Co. #31193
  • Romford driving wheels 15 mm (https://micro-model.ch/)



Chassis Balboa Old Time 2-6-0

  • Drivers, Diameter 42" (48 .. 50")
  • Wheelbase 11'
  • Boiler, Diameter 50" (65")
  • Length over bumpers 30'
  • Balboa 2-6-0

Prototypes

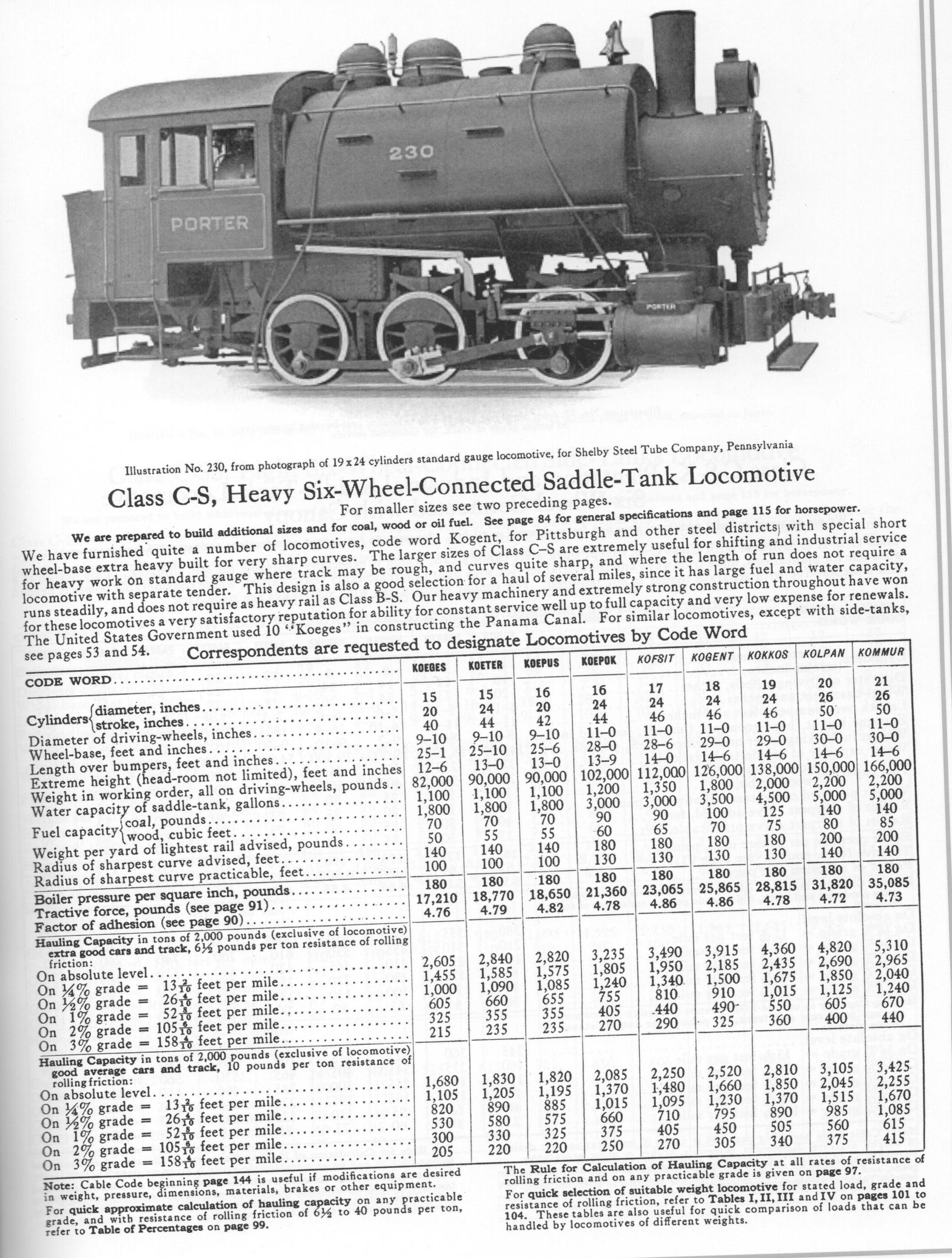

0-6-0T Porter WK&S #65

from http://www.jeff-z.com/wks/locoroster/65/65.html


  • File:H.K.Porter.1930.JPG
  • File:Hugh_llewelyn_2_(5958441648).jpg

Barre and Chelsea Railroad No.6 0-6-2T

https://www.flickr.com/photos/bmrrhs/10925354055/in/photostream/, No. 4 http://josephasmithcollection.blogspot.com/2017/04/barre-chelsea-railroad-steam-locomotive.html

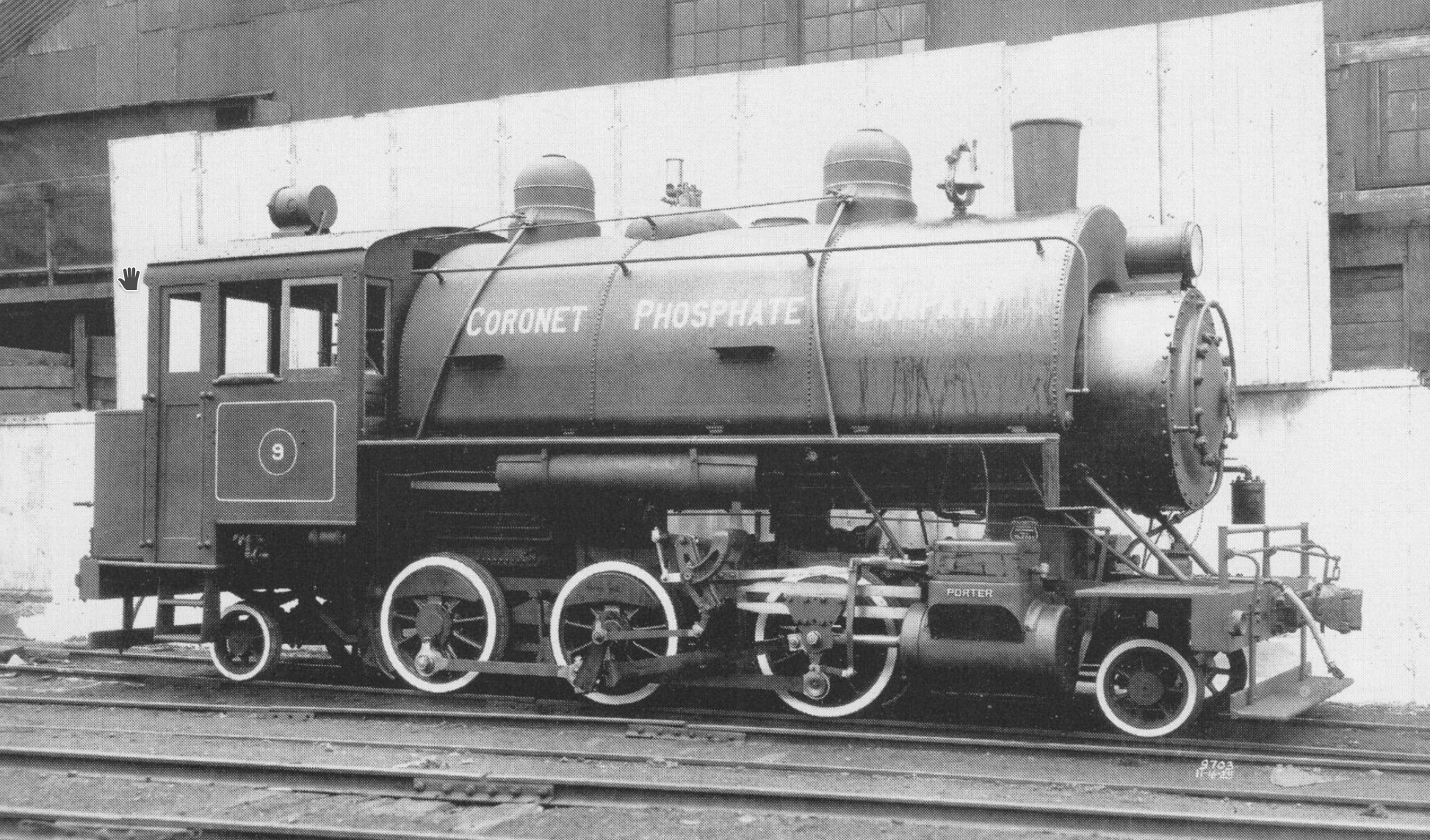

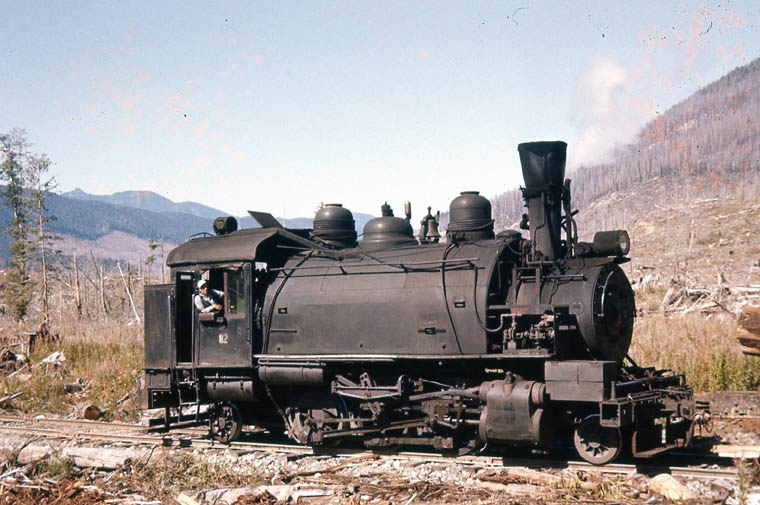

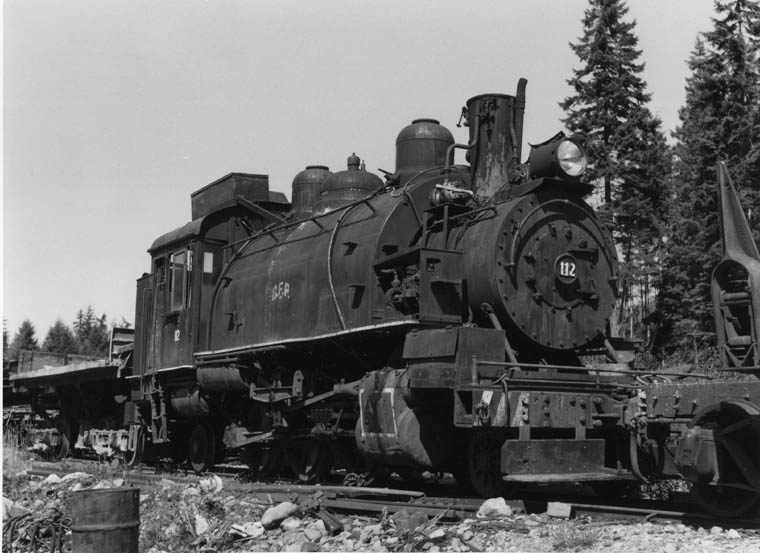

Canadian Forest Products (CANFOR) (acq.1948) 112 2-6-2T 90-ton BLW #56323 3/1923

from http://www.trainweb.org/oldtimetrains/photos/logging/bc_steam.htm

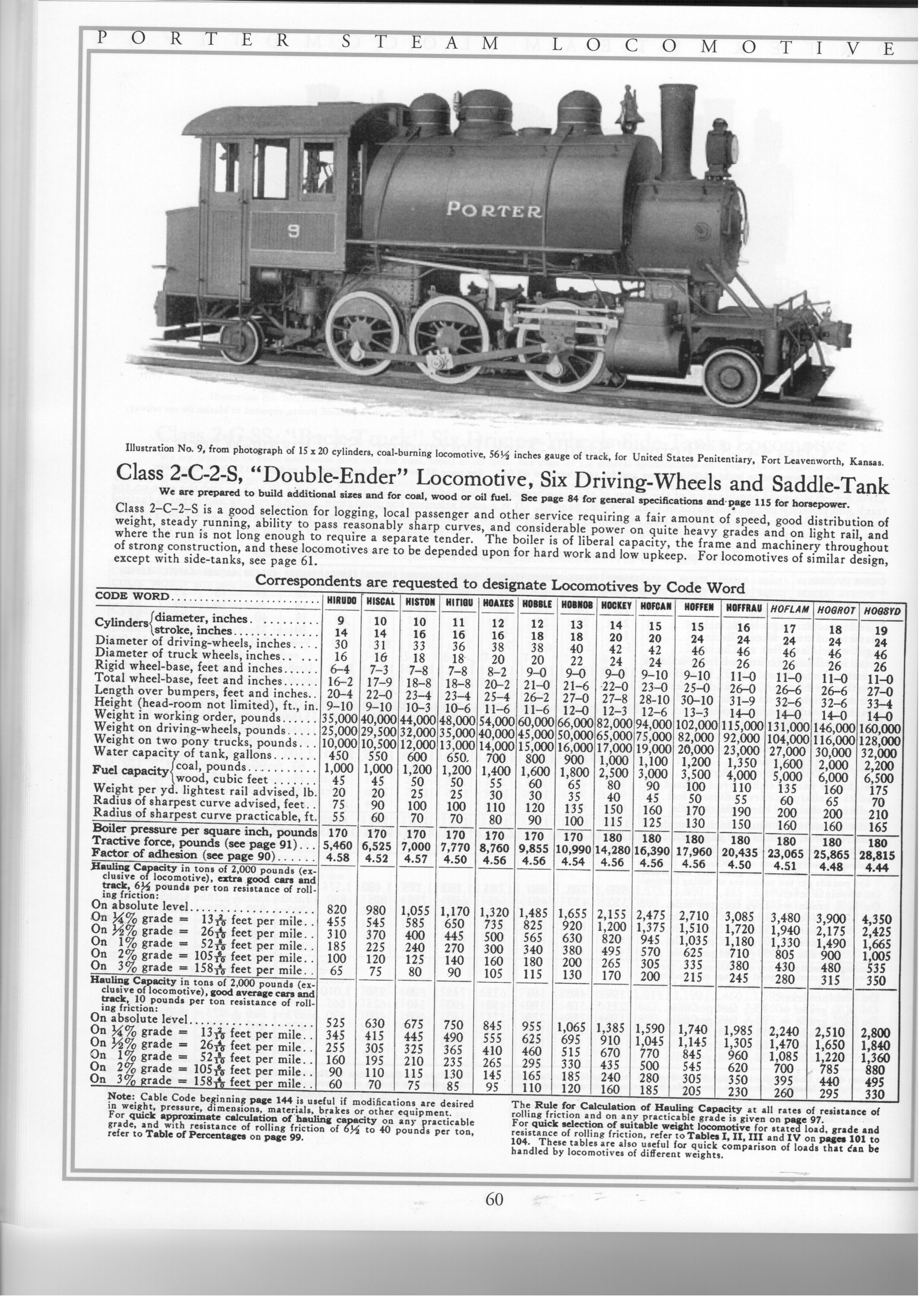

Porter Steam Locomotives

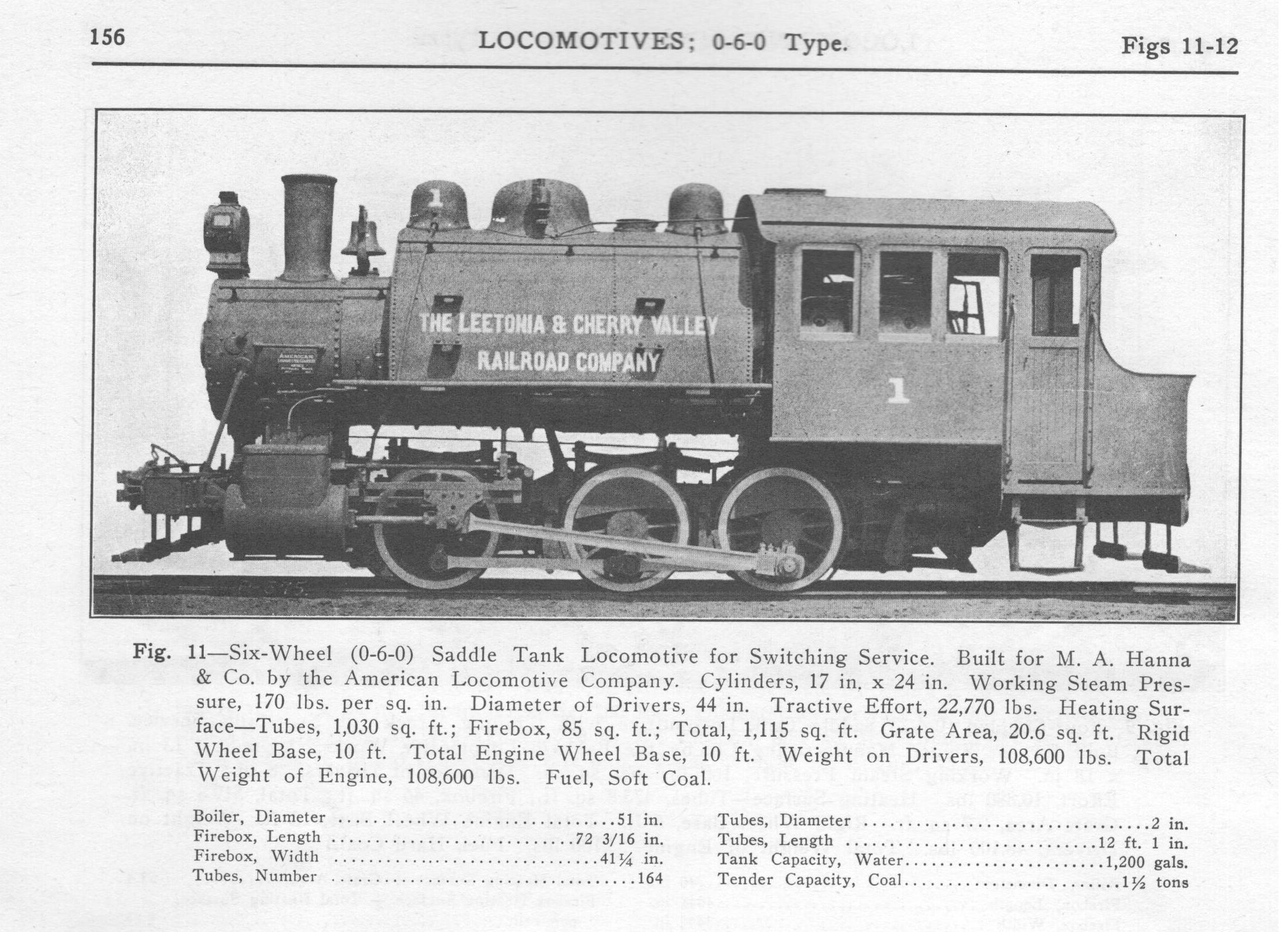

ALCO 0-6-0T

Baldwin 0-6-2T

Baldwin 0-6-2T,


http://hawkinsrails.net/preservation/gsrm/gsrm_loco.html

Inspiration

-- Peter Schmid - 2019-11-30
