2.5 Schematics

The schematics are drawn with the Eagle CAE package from CadSoft. There is a freeware software package for preview and printing, see http://www.cadsoft.de.

The Controller Board schematics starts at page [*] and ends at page [*], The Driver Board schematics starts at page [*] and ends at page [*].

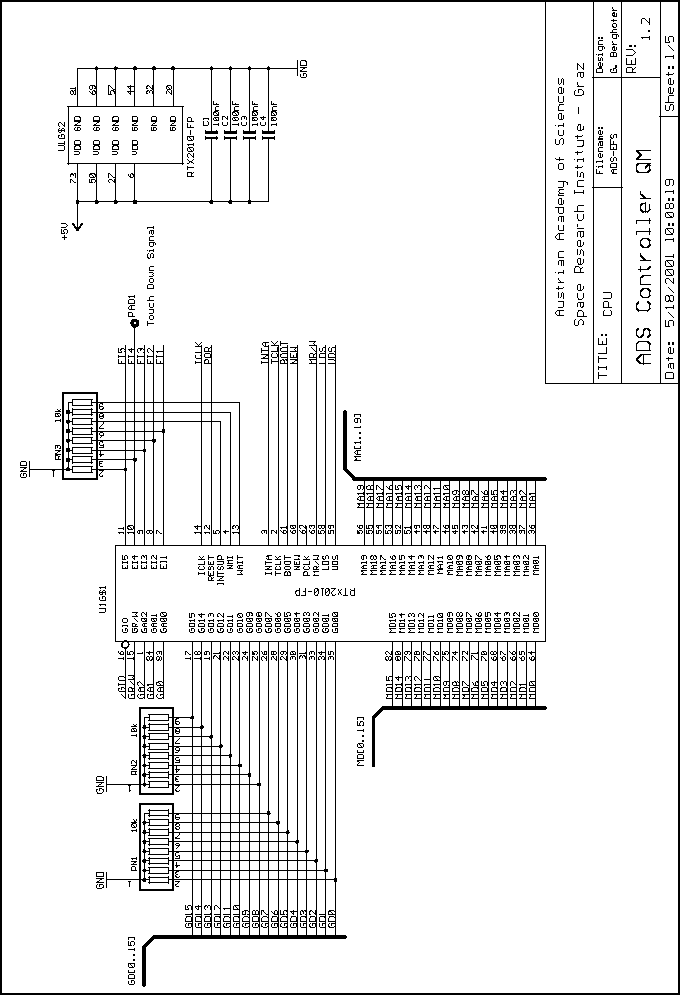

Figure 3: Controller Schematic, Page 1
\begin{figure}\epsfig{file=controller-1.epsi, height=220mm} \end{figure}

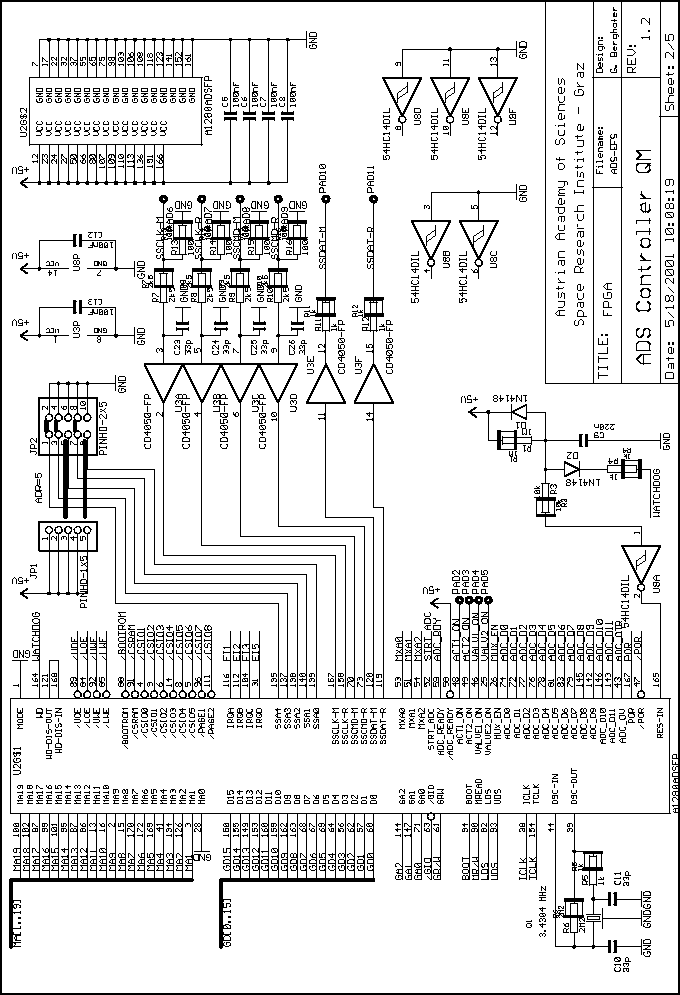

Figure 4: Controller Schematic, Page 2
\begin{figure}\epsfig{file=controller-2.epsi, height=220mm} \end{figure}

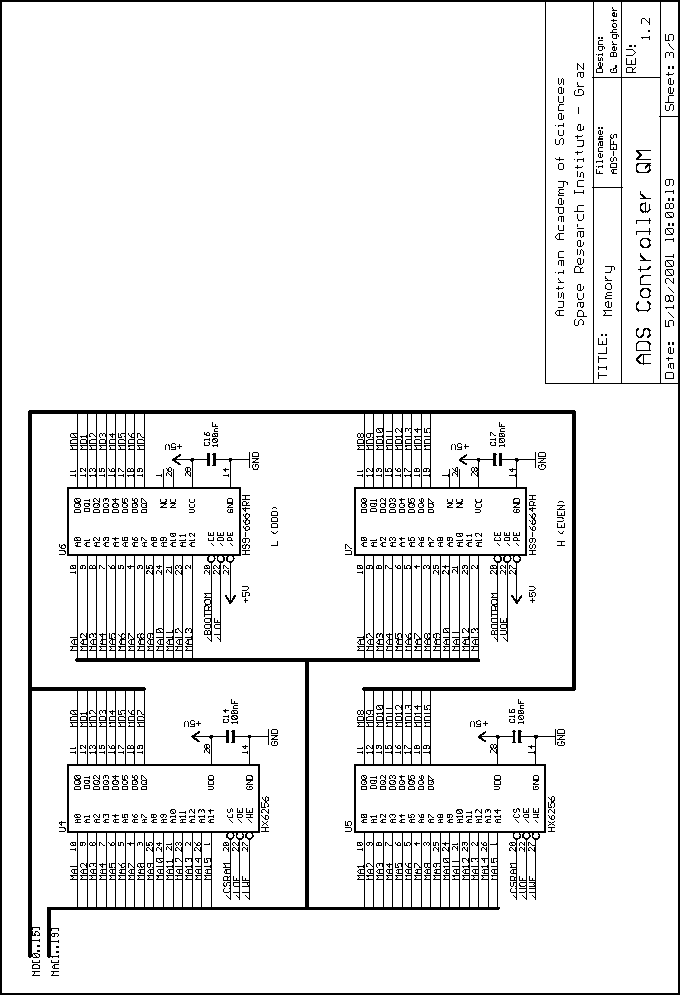

Figure 5: Controller Schematic, Page 3
\begin{figure}\epsfig{file=controller-3.epsi, height=220mm} \end{figure}

Figure 6: Controller Schematic, Page 4
\begin{figure}\epsfig{file=controller-4.epsi, height=220mm} \end{figure}

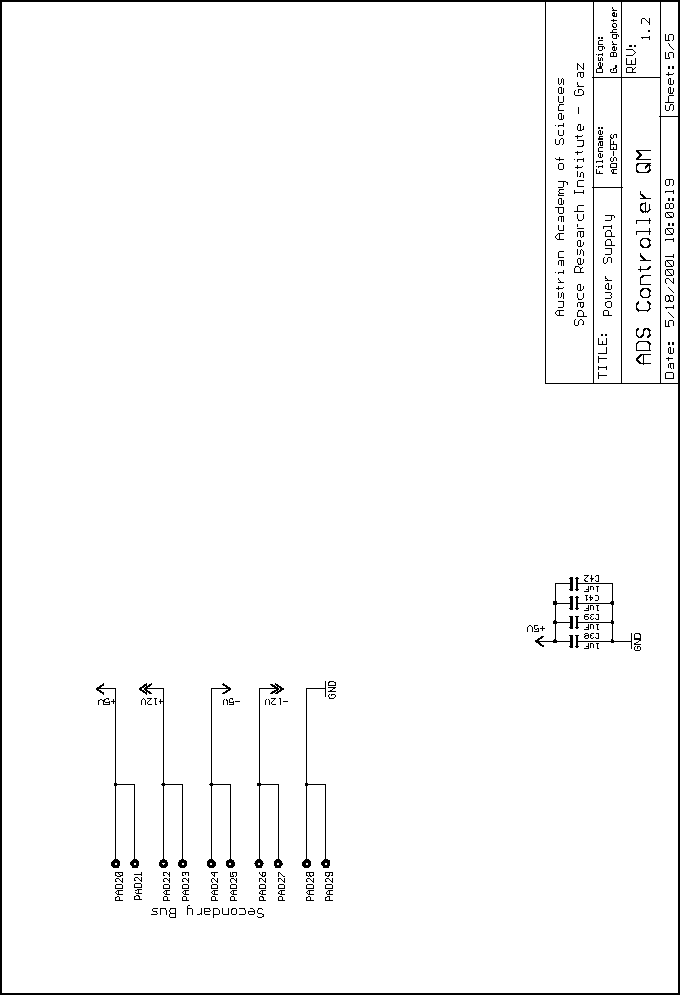

Figure 7: Controller Schematic, Page 5
\begin{figure}\epsfig{file=controller-5.epsi, height=220mm} \end{figure}

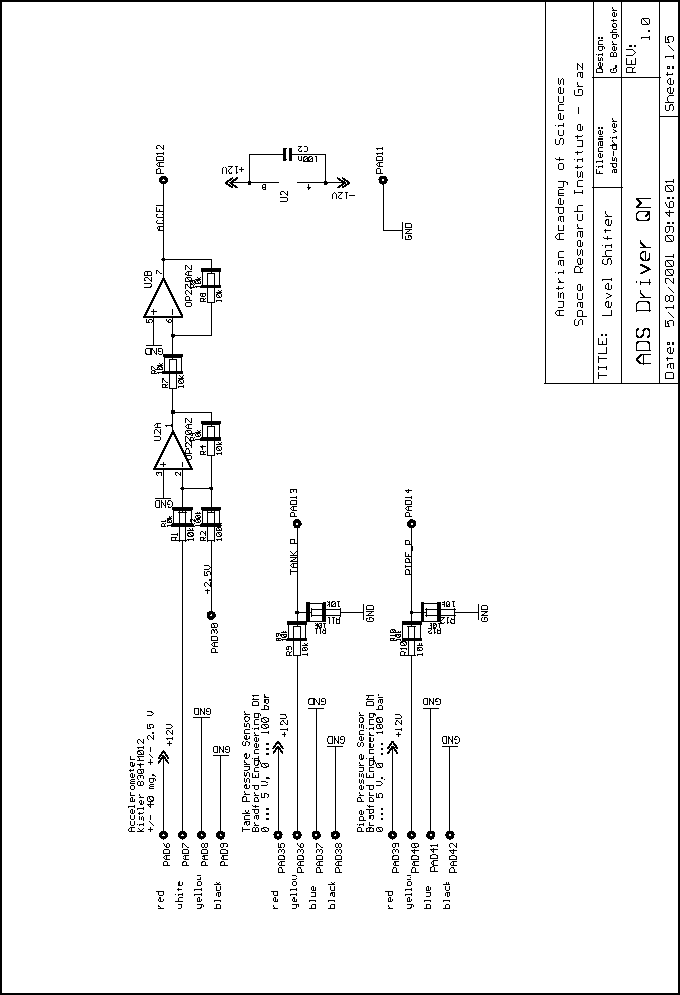

Figure 8: Driver Schematic, Page 1
\begin{figure}\epsfig{file=driver-1.epsi, height=220mm} \end{figure}

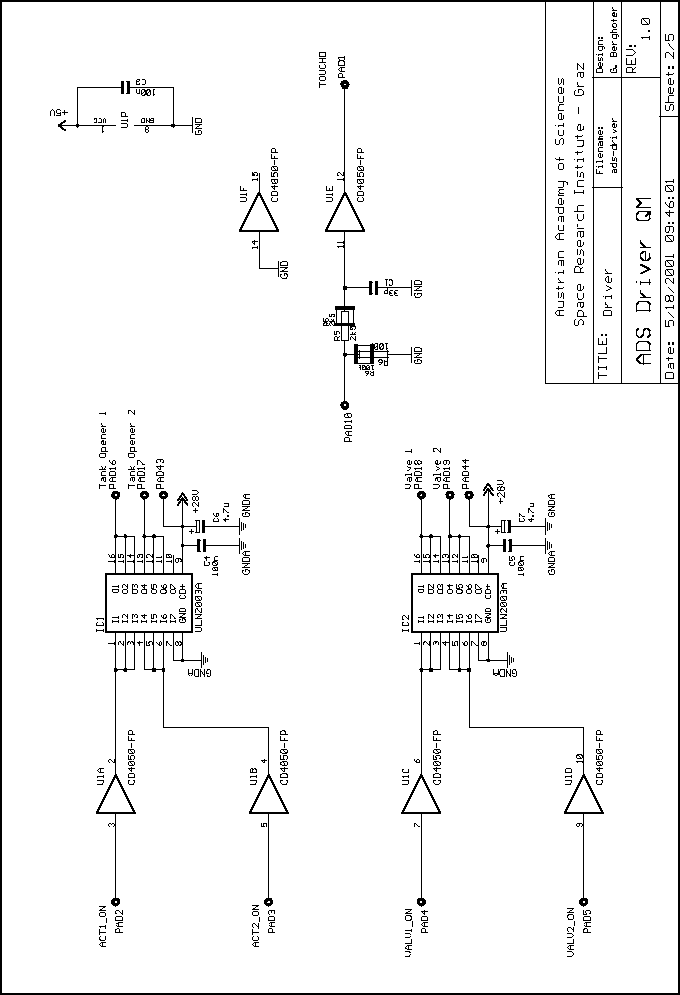

Figure 9: Driver Schematic, Page 2
\begin{figure}\epsfig{file=driver-2.epsi, height=220mm} \end{figure}

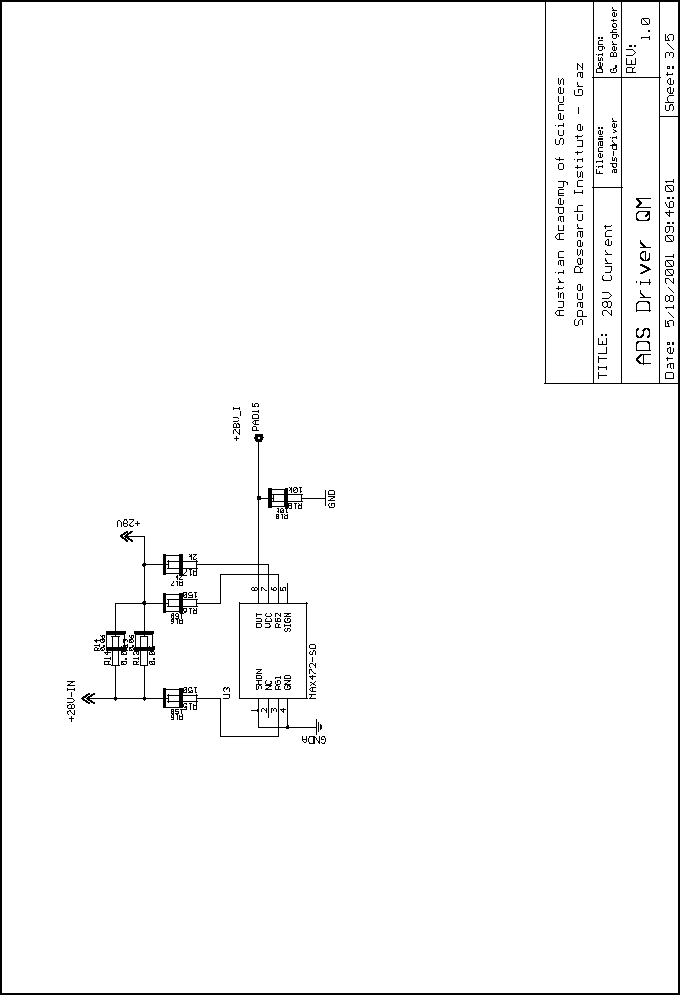

Figure 10: Driver Schematic, Page 3
\begin{figure}\epsfig{file=driver-3.epsi, height=220mm} \end{figure}

Figure 11: Driver Schematic, Page 4
\begin{figure}\epsfig{file=driver-4.epsi, height=220mm} \end{figure}
